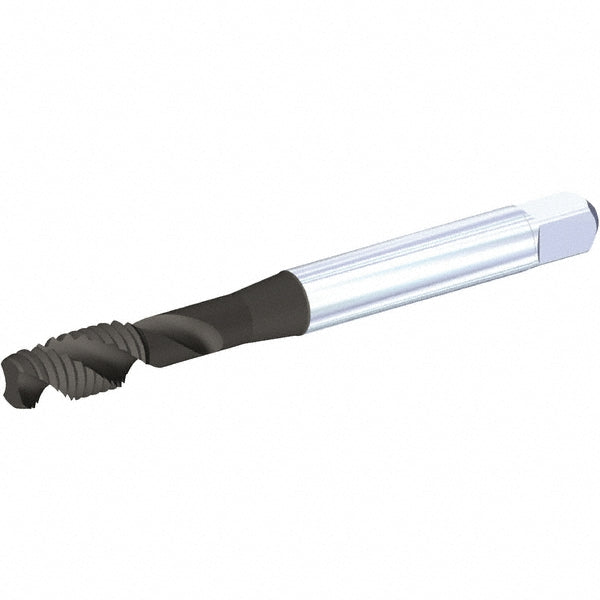

#4-40 UNC Cobalt Tap, Multi-layer - Kennametal 5689864
MFR# 5689864Series T682
$48.49List $62.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingMulti-layer
Description
The Kennametal 5689864 is a #4-40 UNC Cobalt tap with a Multi-layer finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishMulti-layer
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum Wrought Alloy
Neck length0.4000
Number of flutes2
Overall length2.2000
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.1410
Tapping depth0.7100
Thread directionRight Hand
Thread length (mm)8.00
Thread limitH2
Thread size in#4-40
Thread standardUNC
