Kennametal
#10-24 UNC Cobalt Tap, Multi-layer - Kennametal 5689869
MFR# 5689869Series T682
$39.45List $50.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-24
CoatingMulti-layer
Description

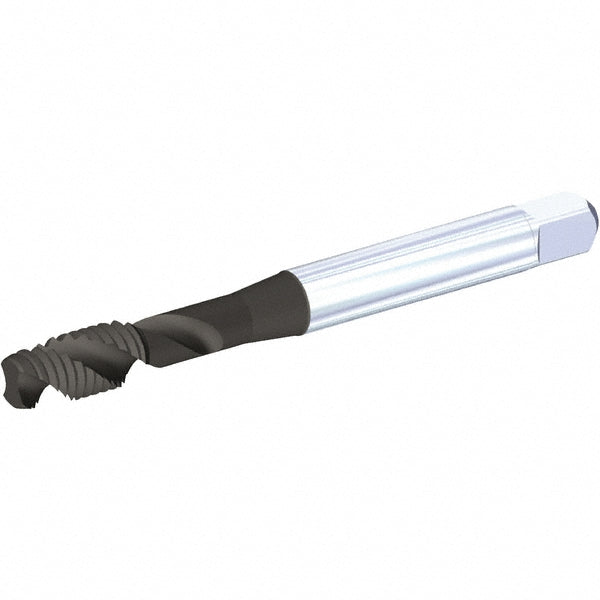

The Kennametal 5689869 is a #10-24 UNC Cobalt tap with a Multi-layer finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishMulti-layer
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum Wrought Alloy
Neck length in33/64
Number of flutes2
Overall length2.7600
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.1940
Tapping depth0.9800
Thread directionRight Hand
Thread length (mm)12.00
Thread limitH3
Thread size in#10-24
Thread standardUNC
