Kennametal

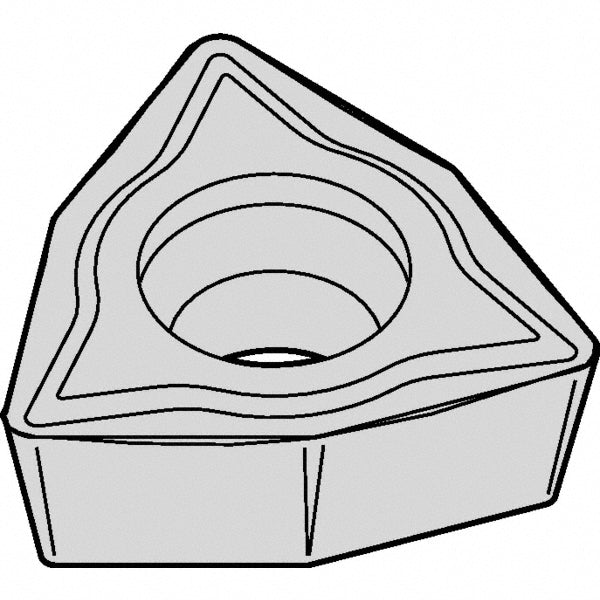

WPMT06T308LF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5696937
MFR# 5696937ISO/ANSI# WPMT06T308Series Screw-On
$24.23List $29.57
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5696937 is a WPMT06T308LF carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeWPMT3252
Ansi size code3252
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberWPMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.5130
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code3252
Insert styleWPMT
Insert thickness in5/32
Iso codeWPMT06T308LF
Iso insert codeWPMT06T308
Iso size code06T308
Length range0.5000 - 0.6000
Manufacturers catalog number5696937
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.1708
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.5130
Wiper edgeNo
