Kennametal

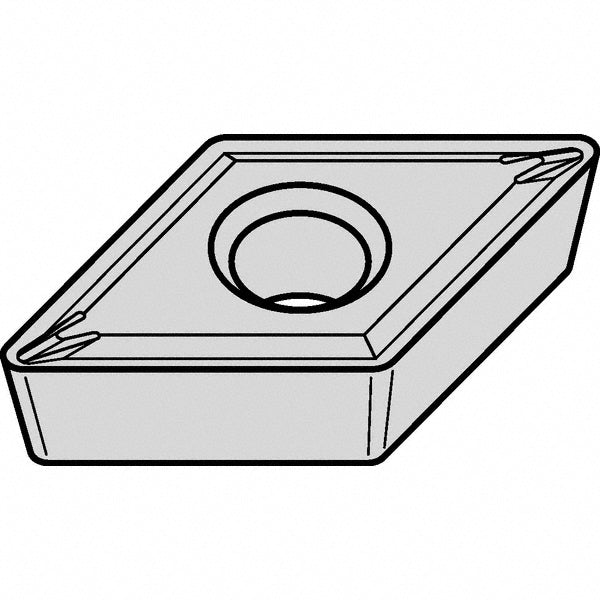

DCMT11T304LF Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697019
MFR# 5697019ISO/ANSI# DCMT3251LFSeries Screw-On
$23.56List $28.76
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697019 is a DCMT11T304LF carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerLF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304LF
Length range0.7000 - 10.0000
Manufacturers catalog number5697019
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
