Kennametal

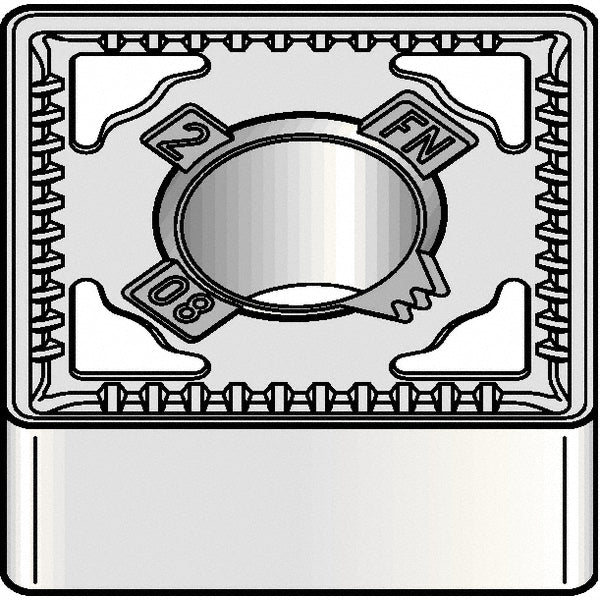

SNMG432 Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697027
MFR# 5697027ISO/ANSI# SNMG432FNSeries KENLOC
$23.52List $28.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697027 is a SNMG432 carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle90degree
Industry standard numberSNMG432FN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG432
Length range0.5000 - 0.6000
Manufacturers catalog number5697027
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
