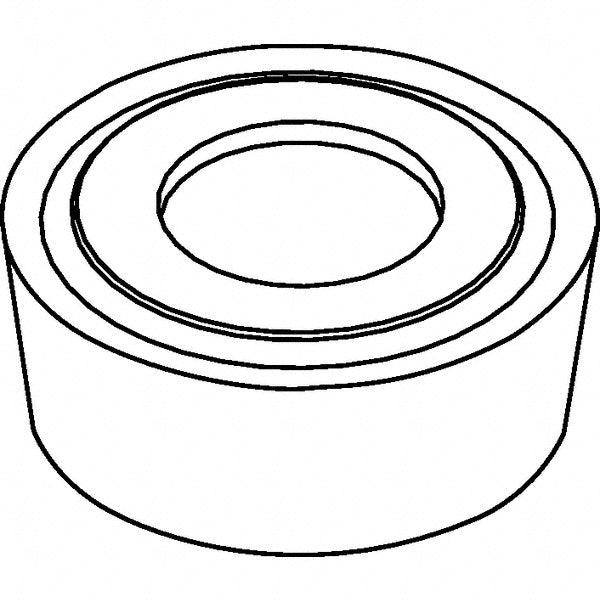

R - Round 1/2" IC Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697119

Kennametal

R - Round 1/2" IC Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697119

MFR# 5697119ISO/ANSI# RCMT120400Series Screw-On

$30.52List $37.25 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKCP10B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5697119 is a carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi insert codeRCMT43
Ansi size code43
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/4
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2165
Included angle360
Industry standard numberRCMT43
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeR - Round
Insert size code43
Insert styleRCMT
Insert thickness in3/16
Iso insert codeRCMT120400
Iso size code120400
Length range0.5000 - 0.6000
Manufacturers catalog number5697119
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
