Kennametal

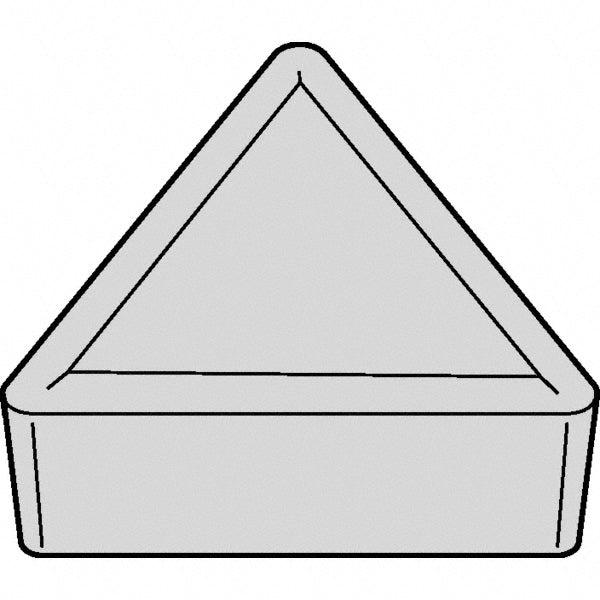

TPMR160304 Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697182
MFR# 5697182ISO/ANSI# TPMR160304Series KENDEX
$31.20List $38.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697182 is a TPMR160304 carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTPMR321
Ansi size code321
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle60
Industry standard numberTPMR321
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6495
Insert materialCarbide
Insert shapeT - Triangle
Insert size code321
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160304
Iso insert codeTPMR160304
Iso size code160304
Length range0.6000 - 0.6500
Manufacturers catalog number5697182
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6495
Wiper edgeNo
