Kennametal

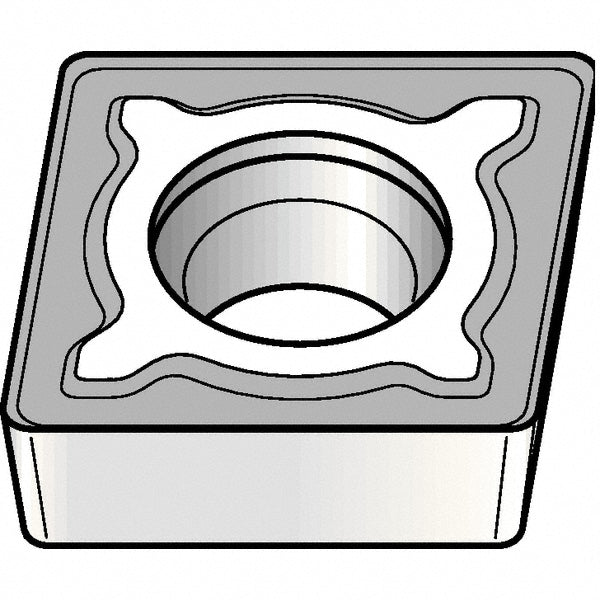

CCMT32.51 Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697912
MFR# 5697912ISO/ANSI# CCMT09T304Series Screw-On
$29.73List $36.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697912 is a CCMT32.51 carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCCMT3251
Ansi size code3251
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT3251MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT32.51
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number5697912
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
