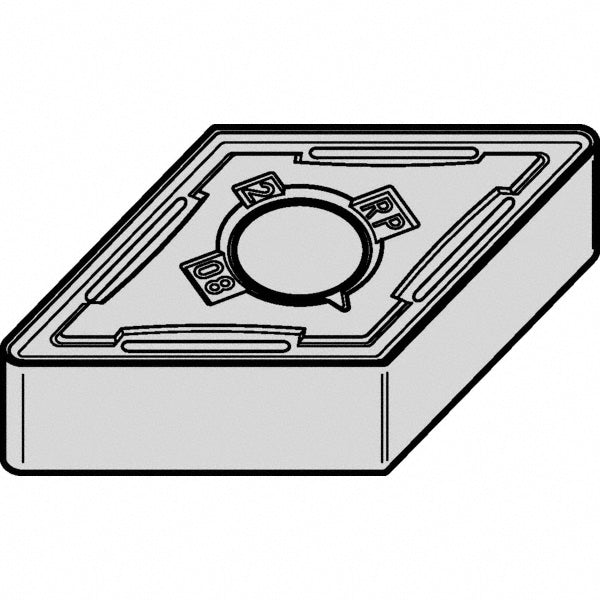

Diamond 55 1/2" IC Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697968

Kennametal

Diamond 55 1/2" IC Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697968

MFR# 5697968ISO/ANSI# DNMG432RPSeries KENLOC

$33.09List $40.39 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeKCP10B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5697968 is a carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerRP
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle55degree
Industry standard numberDNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number5697968
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.4065
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
