Kennametal

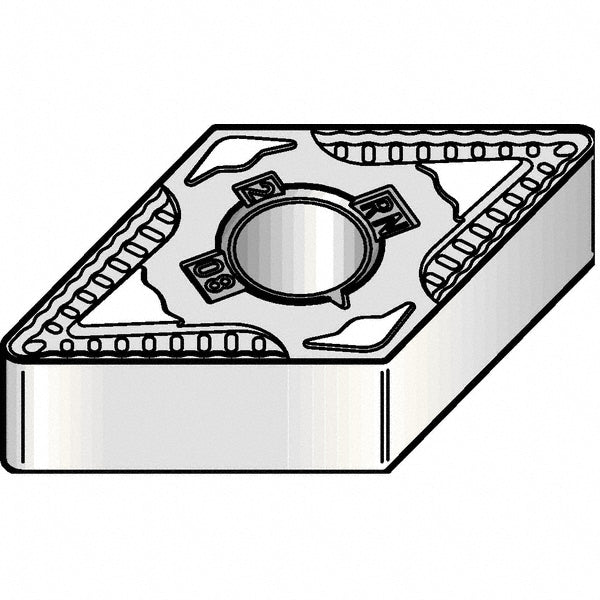

DNMG190608RN Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697974
MFR# 5697974ISO/ANSI# DNMG190608Series KENLOC
$54.12List $66.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697974 is a DNMG190608RN carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeDNMG542
Ansi size code542
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle55
Industry standard numberDNMG542RN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.5260
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code542
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG190608RN
Iso insert codeDNMG190608
Iso size code190608
Length range0.7000 - 10.0000
Manufacturers catalog number5697974
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.5082
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
