Kennametal

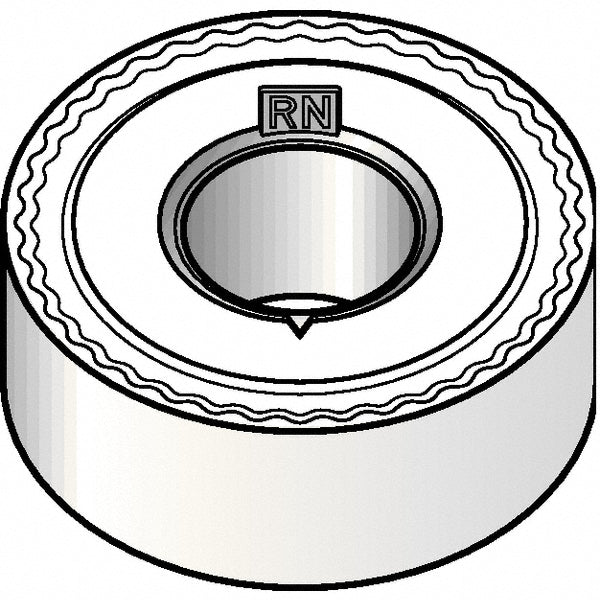

RNMG190600RN Carbide Insert, Grade KCP25B, TiCN - Kennametal 5698083
MFR# 5698083ISO/ANSI# RNMG190600Series KENLOC
$45.51List $55.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeR - Round
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5698083 is a RNMG190600RN carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeRNMG64
Ansi size code64
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/8
Cutting edge styleChamfered; Honed
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3125
Included angle360
Industry standard numberRNMG64RN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeR - Round
Insert size code64
Insert styleRNMG
Insert thickness in1/4
Iso codeRNMG190600RN
Iso insert codeRNMG190600
Iso size code190600
Length range0.7000 - 10.0000
Manufacturers catalog number5698083
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2498
Maximum depth of cut frac in1/4
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
