Kennametal

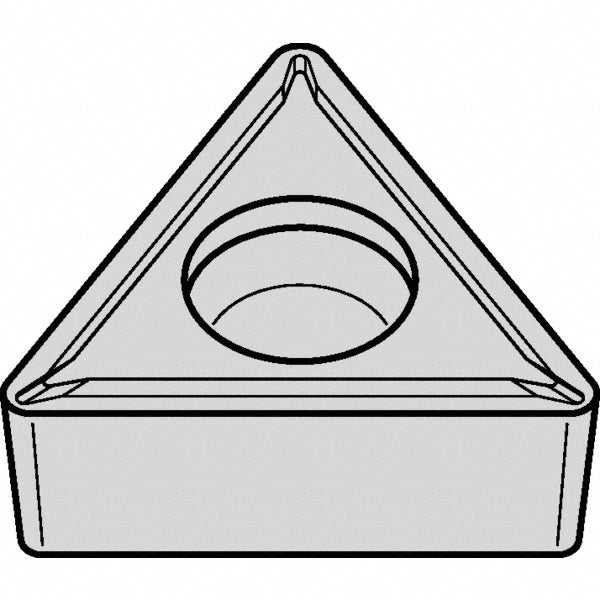

TCMT220408LF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5698124
MFR# 5698124ISO/ANSI# TCMT220408Series Screw-On
$30.96List $37.79
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5698124 is a TCMT220408LF carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTCMT432
Ansi size code432
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2165
Included angle60
Industry standard numberTCMT432LF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTCMT
Insert thickness in3/16
Iso codeTCMT220408LF
Iso insert codeTCMT220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number5698124
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
