Kennametal

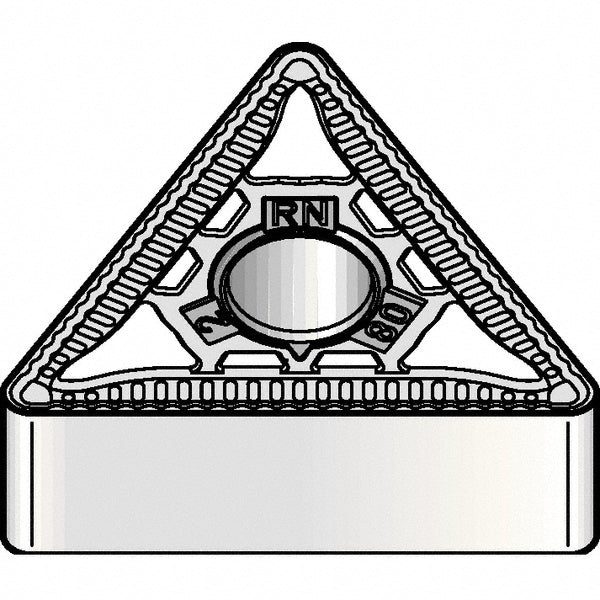

TNMG270616RN Carbide Insert, Grade KCP25B, TiCN - Kennametal 5698139
MFR# 5698139ISO/ANSI# TNMG270616Series KENLOC
$49.11List $59.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeT - Triangle
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5698139 is a TNMG270616RN carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTNMG544
Ansi size code544
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle60
Industry standard numberTNMG544RN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0820
Insert materialCarbide
Insert shapeT - Triangle
Insert size code544
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG270616RN
Iso insert codeTNMG270616
Iso size code270616
Length range0.7000 - 10.0000
Manufacturers catalog number5698139
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.3603
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.0820
Wiper edgeNo
