Kennametal

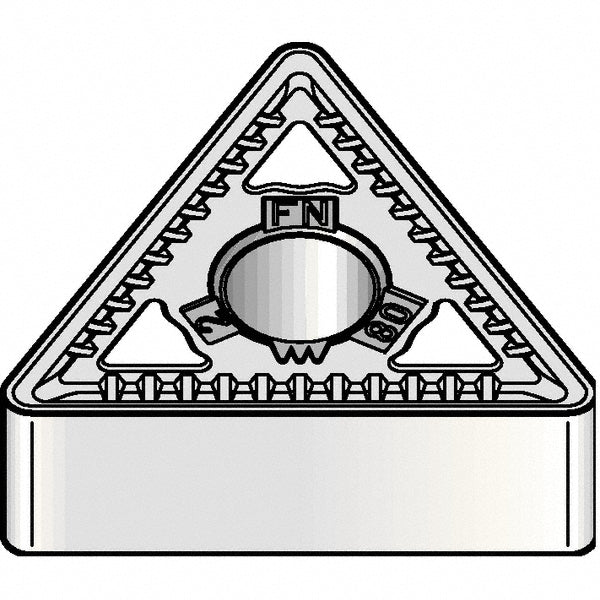

TNMG160408FN Carbide Insert, Grade KCP25B, TiCN - Kennametal 5698188
MFR# 5698188ISO/ANSI# TNMG332FNSeries KENLOC
$17.03List $20.78
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5698188 is a TNMG160408FN carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle60
Industry standard numberTNMG332FN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160408FN
Length range0.6000 - 0.6500
Manufacturers catalog number5698188
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
