Kennametal

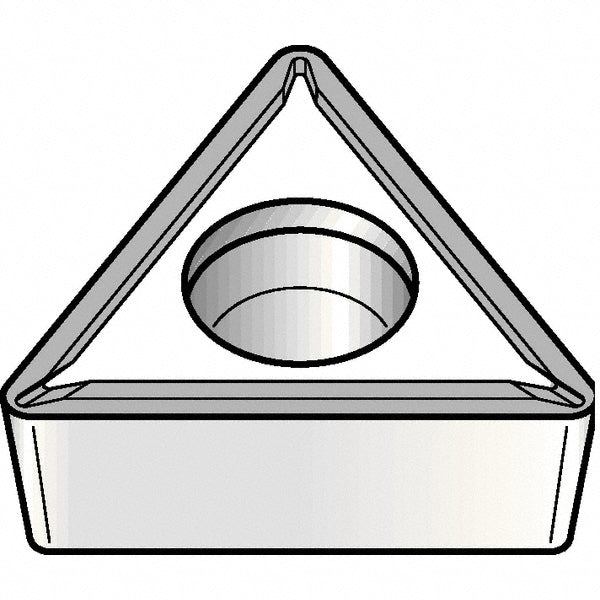

TPMT090204LF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5698196
MFR# 5698196ISO/ANSI# TPMT18151LFSeries Screw-On
$27.71List $33.82
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5698196 is a TPMT090204LF carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerLF
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1043
Included angle60degree
Industry standard numberTPMT18151LF
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert length0.3791
Insert materialCarbide
Insert shapeTriangle
Insert size code18151
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT090204LF
Length range0.3000 - 0.4000
Manufacturers catalog number5698196
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.1262
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width0.3791in
Wiper edgeNo
