Kennametal

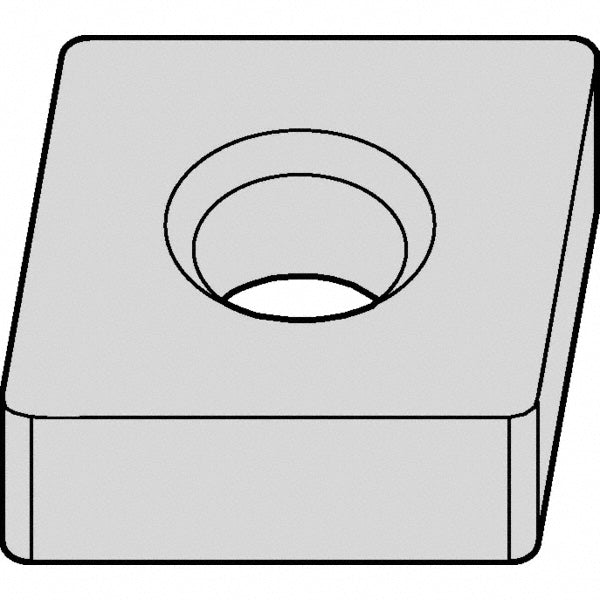

CNMA190612 Carbide Insert, Grade KCK15B, TiCN - Kennametal 5698265
MFR# 5698265ISO/ANSI# CNMA643Series KENLOC
$51.57List $62.95
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeKCK15B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5698265 is a CNMA190612 carbide indexable insert, grade KCK15B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.3125
Included angle80degree
Industry standard numberCNMA643
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeDiamond 80
Insert size code643
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA190612
Length range0.7000 - 10.0000
Manufacturers catalog number5698265
Manufacturer gradeKCK15B
Material gradeC3; C4
Maximum depth of cut0.2536
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
