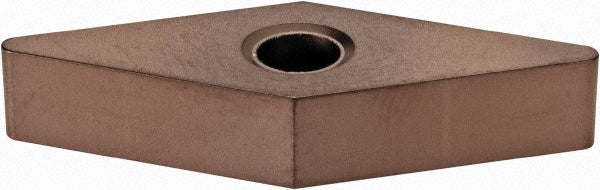

VNMA332 Carbide Insert, Grade KCK15B, TiCN - Kennametal 5700487
MFR# 5700487ISO/ANSI# VNMA160408Series KENLOC
$30.72List $37.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCK15B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5700487 is a VNMA332 carbide indexable insert, grade KCK15B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeVNMA332
Ansi size code332
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMA332
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMA
Insert thickness in3/16
Iso codeVNMA332
Iso insert codeVNMA160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number5700487
Manufacturer gradeKCK15B
Material gradeC3; C4
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
