Kennametal

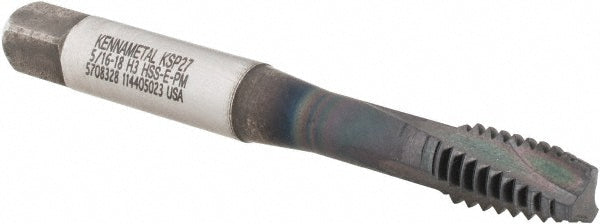

5/16-18 UNC Powdered Metal Tap, AlCrTiN - Kennametal 5708328
MFR# 5708328Series T692
$67.77List $86.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-18
CoatingAlCrTiN
Description
The Kennametal 5708328 is a 5/16-18 UNC Powdered Metal tap with a AlCrTiN finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishAlCrTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle11
MaterialPowdered Metal
Material applicationNickel Alloy
Neck length0.6400
Number of flutes2
Overall length in2-23/32
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.3180
Tapping depth1.1300
Thread directionRight Hand
Thread length0.4900
Thread limitH3
Thread size in5/16-18
Thread standardUNC
