Kennametal

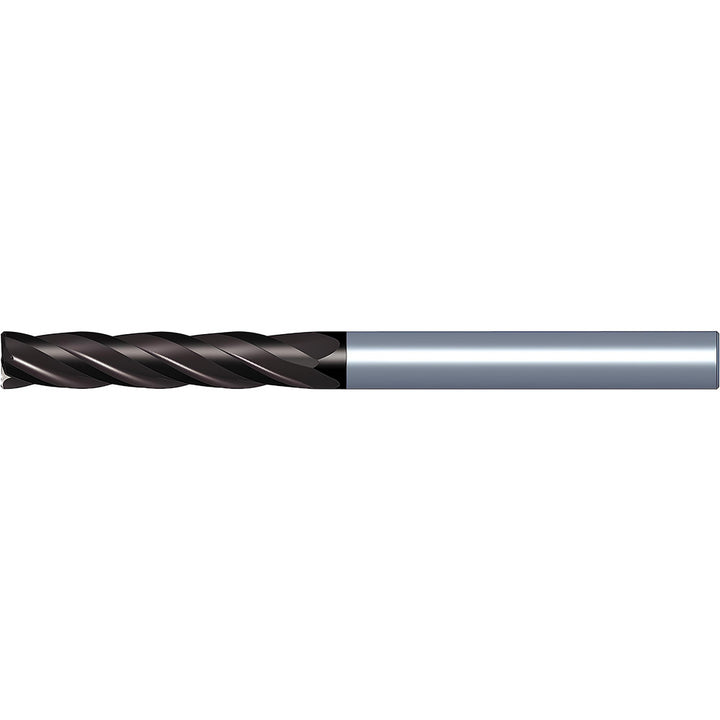

0.4724" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN - Kennametal 5824237
MFR# 5824237Cat# 4CH1200MX075ASeries 4CH
$130.09List $166.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5824237 is a 0.4724 4-flute Solid Carbide (KC633M) corner radius & corner chamfer end mill with a TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. Series 4CH.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.30
Chamfer width0.0118
ChipbreakerNo
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut2.9528
Length typeRegular
Manufacturers catalog number4CH1200MX075A
Material gradeKC633M
Material removal typeRoughing & Finishing
Mill diameter0.4724
Mill diameter tolerance-0.032 to -0.059 mm
Number of flutes4
Overall length (mm)149.99
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Reach length (mm)74.98
Shank diameter (mm)12.00
Shank diameter tolerance+0.000 to -0.011 mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
