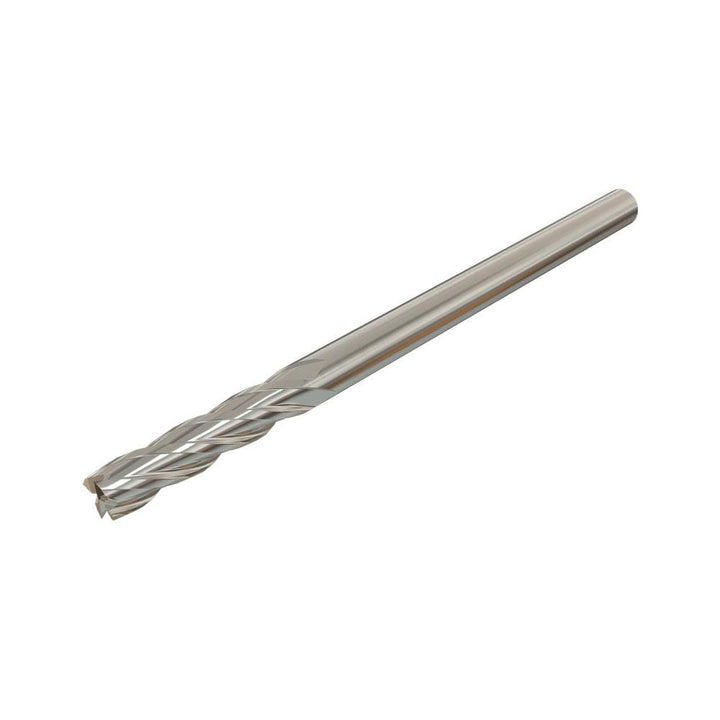

0.4724" 4-Flute Solid Carbide Square End Mill - Iscar 5650729

Iscar

0.4724" 4-Flute Solid Carbide Square End Mill - Iscar 5650729

MFR# 5650729

$152.89List $195.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The Iscar 5650729 is a 0.4724 4-flute Solid Carbide (Fine Grain) square end mill. Suited for non-ferrous metal. 2.9528 length of cut.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut2.9528
Length of cut range2.0000+
Length typeExtra Long
Material gradeFine Grain
Mill diameter0.4724
Mill diameter tolerance-0.032 to 0.059 mm
Number of flutes4
Overall length (mm)150.00
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)12.00
Shank diameter tolerance0.000/-0.011 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Kennametal0.4724" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN - Kennametal 5824237 $130.09 OSG0.4724" 4-Flute Solid Carbide Square End Mill - OSG 484-4724 $137.67 Hertel0.4724" 4-Flute Cobalt Single End Mill, TiCN - Hertel 91196741 $108.04 Hertel0.4724" 4-Flute Cobalt Single End Mill - Hertel 91197574 $122.57
