Kennametal

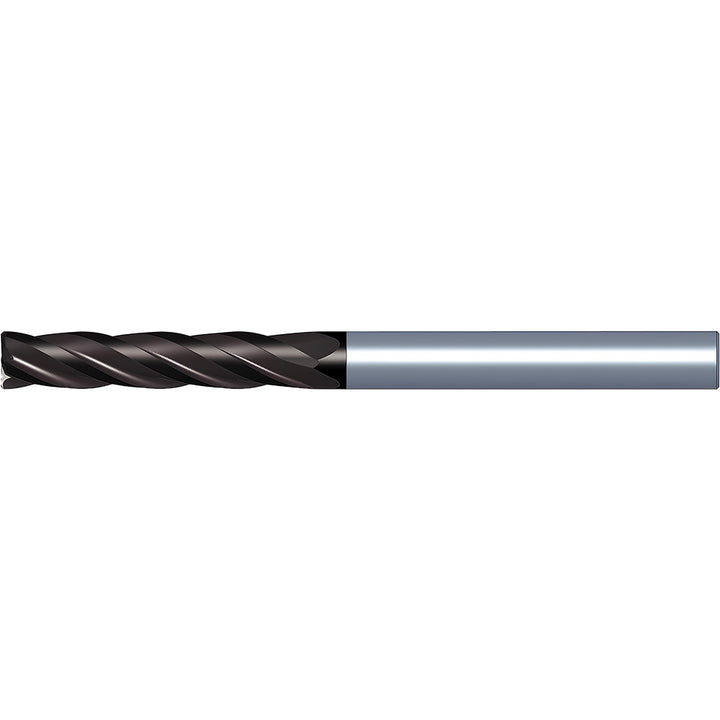

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN/TiAlN - Kennametal 5824386

MFR# 5824386Cat# 4CH0500IS062ASeries 4CH

$101.60List $130.31 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiN/TiAlN

Description

The Kennametal 5824386 is a 1/2 4-flute Solid Carbide (KC633M) corner radius & corner chamfer end mill with a TiN/TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. 5/8 length of cut, 2-1/2 overall length. Series 4CH.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0200

Chamfer width0.0200

ChipbreakerNo

Coating finishTiN/TiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleMedium

Length of cut in5/8

Length typeRegular

Manufacturers catalog number4CH0500IS062A

Material gradeKC633M

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance-0.032 to -0.059 mm

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal

Reach length in5/8

Shank diameter in1/2

Shank diameter tolerance+0.000 to -0.011 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
