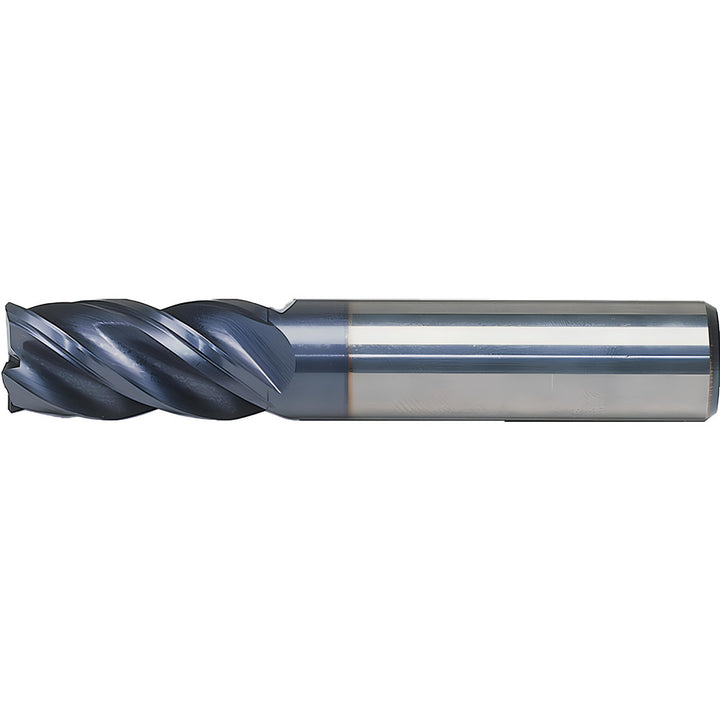

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4071902

MFR# 4071902Cat# HPHV500S4063LSeries HPHV

$170.65List $218.87 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4071902 is a 1/2 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 5/8 length of cut, 3 overall length. Series HPHV.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleMedium

Length of cut in5/8

Length typeRegular

Manufacturers catalog numberHPHV500S4063L

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes4

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Reach length in5/8

Shank diameter in1/2

Shank diameter tolerance+0.00000 to -0.00035 in

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
