Kennametal

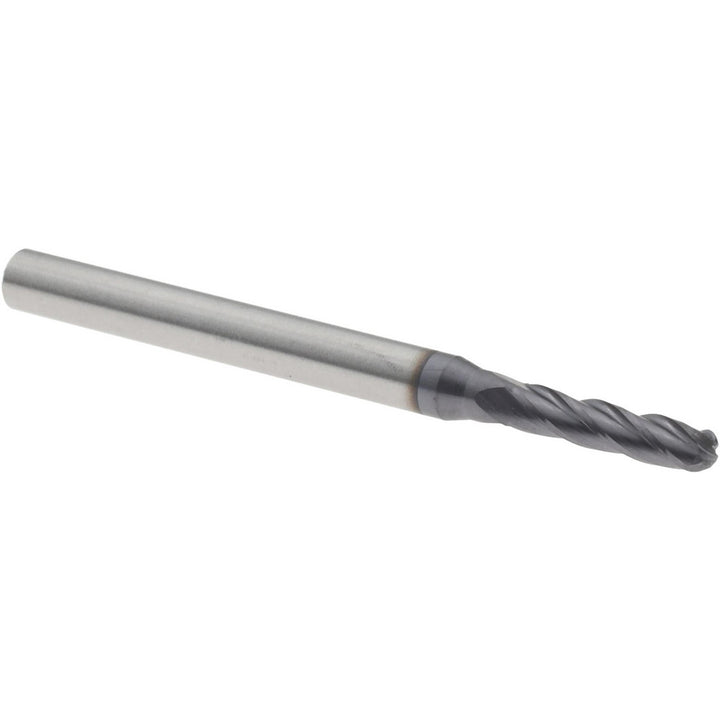

3/32" 4-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5824504

MFR# 5824504Cat# 4BN0094IL037ASeries GOmill 4BN

$28.66List $36.75 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/32

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Kennametal 5824504 is a 3/32 4-flute Solid Carbide ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 3/8 length of cut, 1-1/2 overall length. Series GOmill 4BN.

Specifications

Additional informationSolid Carbide End Mill with Excellent Cost-Benefit Ratio. Eccentric Relief Increases Cutting Edge Stability for Long Tool Life & High Surface Quality. Eccentric Relief Eases Regrinding & Reduces Reconditioning Cost. Center Cutting for Plunging & Ramping O

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in3/8

Length typeStandard

Manufacturers catalog number4BN0094IL037A

Material removal typeRoughing & Finishing

Mill diameter in3/32

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.0469

Number of flutes4

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length0.3750

Shank diameter in1/8

Shank diameter tolerance+0.00000/-0.00024 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
