Kennametal

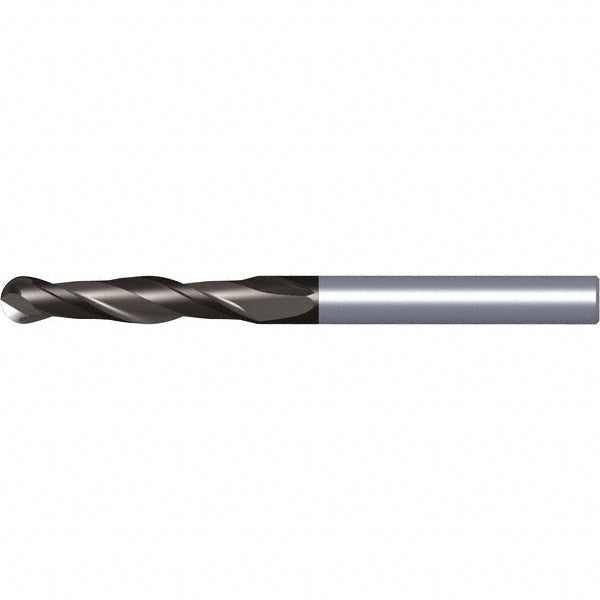

3/32in" 2-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5876725
MFR# 5876725Cat# 2BN0094IL037ASeries GOmill 2BN
$28.66List $36.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/32in
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5876725 is a 3/32in 2-flute Solid Carbide ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 3/8in length of cut, 1-1/2in overall length. Series GOmill 2BN.
Specifications
Additional informationSolid Carbide End Mill With Excellent Cost-Benefit Ratio. Eccentric Relief Increases Cutting Edge Stability For Long Tool Life And High Surface Quality. Eccentric Relief Eases Regrinding And Reduces Reconditioning Cost. Center Cutting For Plunging And Ram
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/8in
Length typeStandard
Manufacturers catalog number2BN0094IL037A
Material removal typeRoughing & Finishing
Mill diameter in3/32in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0469
Number of flutes2
Overall length in1-1/2in
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length0.3750
Shank diameter in1/8in
Shank diameter tolerance+0.00000/-0.00024 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
