Kennametal

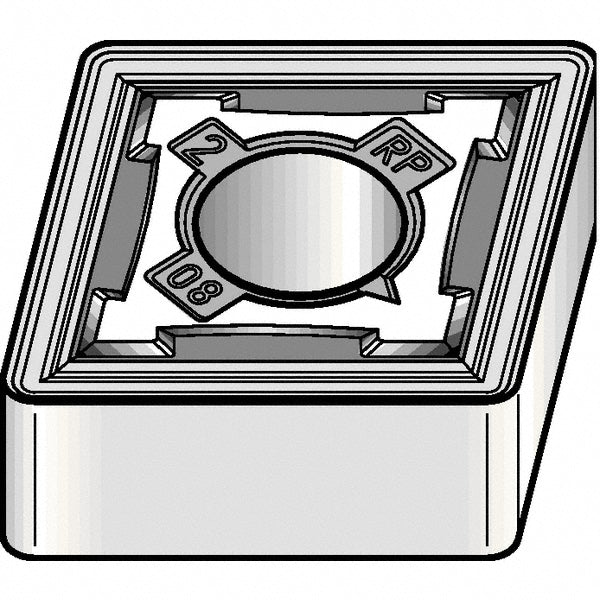

CNMG120408RP Carbide Insert, Grade KCP30B, TiN - Kennametal 5882322
MFR# 5882322ISO/ANSI# CNMG432RPSeries KENLOC
$25.38List $30.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCP30B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5882322 is a CNMG120408RP carbide indexable insert, grade KCP30B, TiN coated. Suited for steel.
Specifications
Chip breakerRP
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408RP
Length range0.5000 - 0.6000
Manufacturers catalog number5882322
Manufacturer gradeKCP30B
Material gradeC5; C6
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
