Kennametal

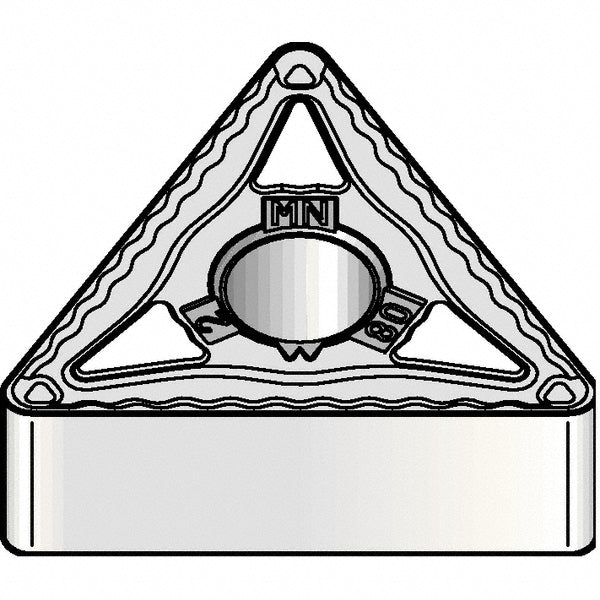

TNMG160408MN Carbide Insert, Grade KCP30B, TiN - Kennametal 5882323
MFR# 5882323ISO/ANSI# TNMG332MNSeries KENLOC
$20.75List $25.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKCP30B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5882323 is a TNMG160408MN carbide indexable insert, grade KCP30B, TiN coated. Suited for steel.
Specifications
Chip breakerMN
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG332MN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160408MN
Length range0.6000 - 0.6500
Manufacturers catalog number5882323
Manufacturer gradeKCP30B
Material gradeC5; C6
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
