Kennametal

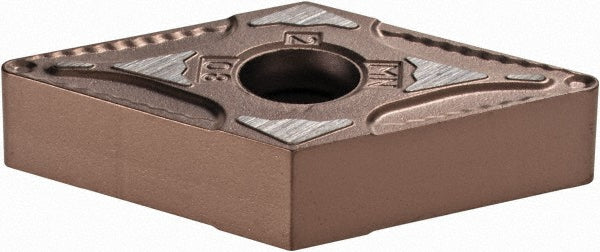

DNMG150408MN Carbide Insert, Grade KCP30B, TiN - Kennametal 5882324
MFR# 5882324ISO/ANSI# DNMG432MNSeries KENLOC
$33.09List $40.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeKCP30B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5882324 is a DNMG150408MN carbide indexable insert, grade KCP30B, TiN coated. Suited for steel.
Specifications
Chip breakerMN
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle55degree
Industry standard numberDNMG432MN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408MN
Length range0.7000 - 10.0000
Manufacturers catalog number5882324
Manufacturer gradeKCP30B
Material gradeC5; C6
Maximum depth of cut0.4065
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
