Kennametal

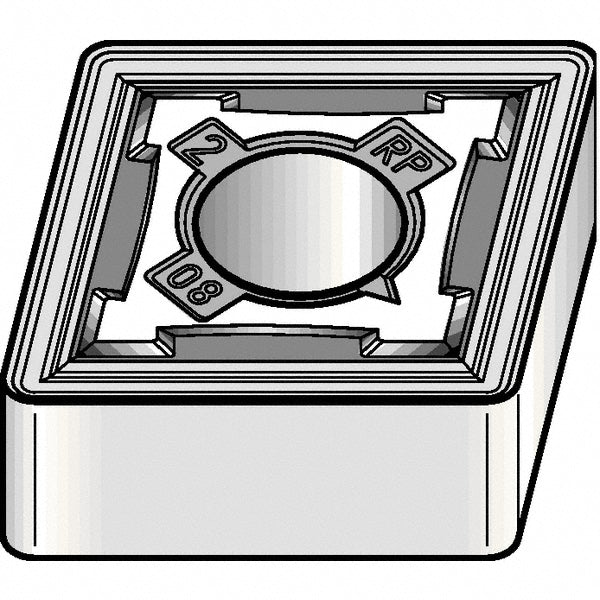

CNMG120412RP Carbide Insert, Grade KCM35B, TiN - Kennametal 5882865
MFR# 5882865ISO/ANSI# CNMG120412Series KENLOC
$25.38List $30.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCM35B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5882865 is a CNMG120412RP carbide indexable insert, grade KCM35B, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCNMG433
Ansi size code433
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNMG433RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412RP
Iso insert codeCNMG120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog number5882865
Manufacturer gradeKCM35B
Material gradeC1; C2
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
