Kennametal

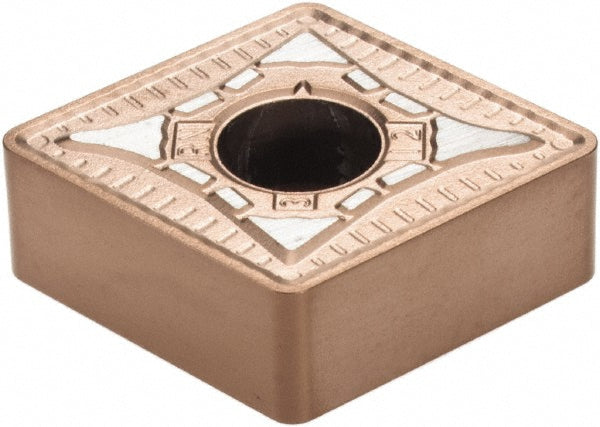

Diamond 80 5/8" IC Carbide Insert, Grade KCP30B, TiN - Kennametal 5892413
MFR# 5892413ISO/ANSI# CNMG543RNSeries KENLOC
$41.01List $50.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeKCP30B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5892413 is a carbide indexable insert, grade KCP30B, TiN coated. Suited for steel.
Specifications
Chip breakerRN
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG543RN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Length range0.6000 - 0.6500
Manufacturers catalog number5892413
Manufacturer gradeKCP30B
Material gradeC5; C6
Maximum depth of cut0.2113
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
