Kennametal

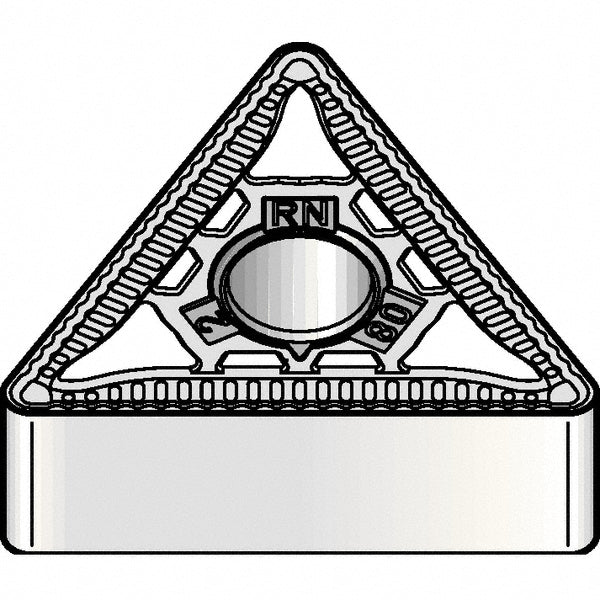

TNMG330924RN Carbide Insert, Grade KCP30B, TiN - Kennametal 5892419
MFR# 5892419ISO/ANSI# TNMG330924Series KENLOC
$69.17List $84.43
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeT - Triangle
GradeKCP30B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5892419 is a TNMG330924RN carbide indexable insert, grade KCP30B, TiN coated. Suited for steel.
Specifications
Ansi insert codeTNMG666
Ansi size code666
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.3125
Included angle60
Industry standard numberTNMG666RN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2992
Insert materialCarbide
Insert shapeT - Triangle
Insert size code666
Insert styleTNMG
Insert thickness in3/8
Iso codeTNMG330924RN
Iso insert codeTNMG330924
Iso size code330924
Length range0.7000 - 10.0000
Manufacturers catalog number5892419
Manufacturer gradeKCP30B
Material gradeC5; C6
Maximum depth of cut0.4326
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.2992
Wiper edgeNo
