Kennametal

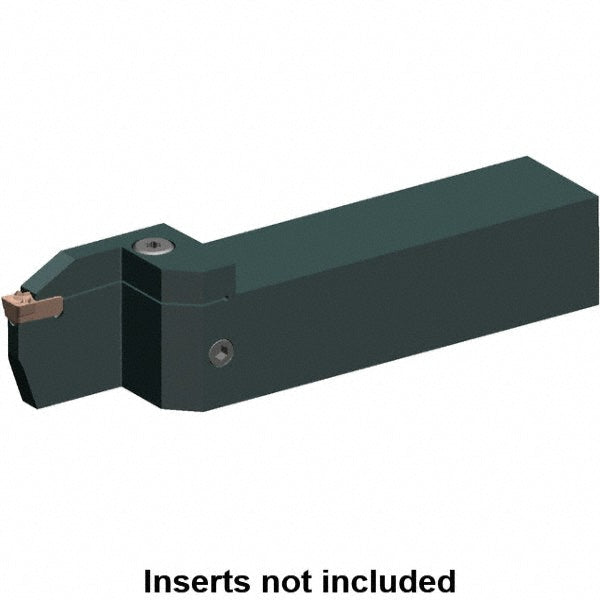

Indexable Cut-Off - Kennametal 5939459
MFR# 5939459Series Beyond Evolution
$238.19List $290.75
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5939459 indexable cut-off. Series Beyond Evolution.
Specifications
Blade width0.1360
Compatible insert size codeEG0400M04P04
Complete insert compatibilityEG0400M04P04
Coolant throughYes
Hand of holderRight
Head height1.1040
Head length1.6930
Insert holding methodClamp
Insert seat size4
Maximum depth of cut0.8660
Maximum insert width0.1360
Maximum workpiece diameter1.7320
Overall length in4-1/2
Shank height in3/4
Shank length2.8070
Shank width diameter in3/4
Toolholder styleEVSM
