Kennametal

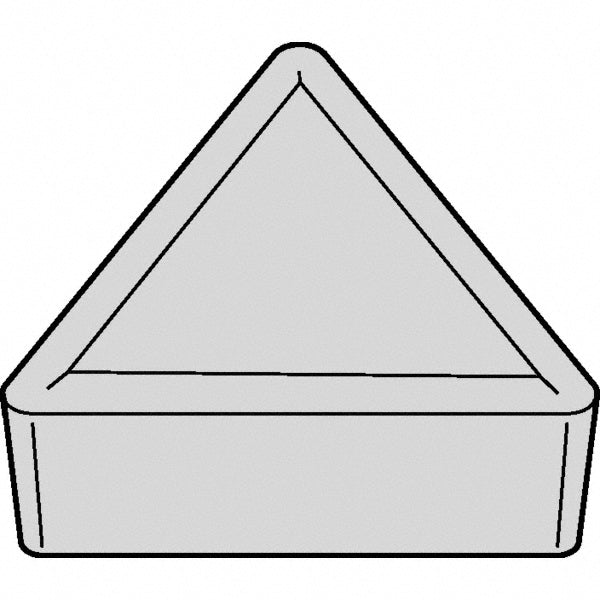

T - Triangle 1/4" IC Carbide Insert, Grade KCP25B, TiCN - Kennametal 5940093
MFR# 5940093ISO/ANSI# TPMR110304Series KENDEX
$25.97List $31.70
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5940093 is a carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTPMR221
Ansi size code221
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle60
Industry standard numberTPMR221
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleTPMR
Insert thickness in1/8
Iso insert codeTPMR110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number5940093
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.1442
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
