Kennametal

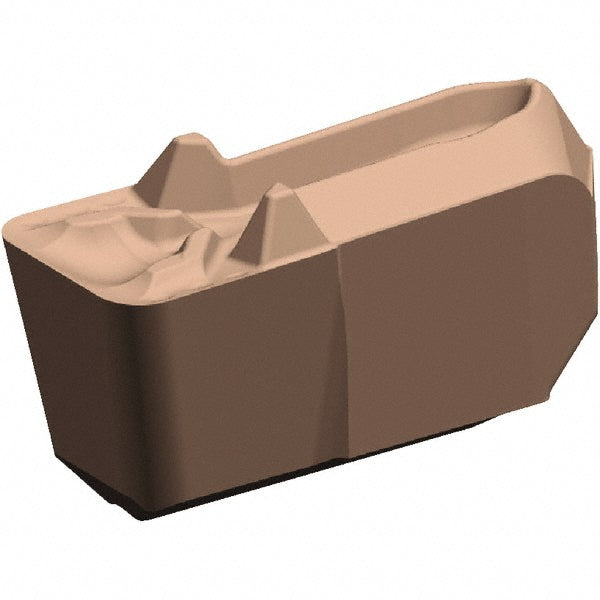

Carbide Insert, Grade KCU25, AlTiN - Kennametal 5941104
MFR# 5941104Series Beyond Evolution
$23.73List $28.96
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 5941104 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0320
Cutting height0.1730
Cutting width0.1580
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size4
Insert styleEG-P
Insert thickness0.1730
Manufacturer gradeKCU25
Maximum depth of cut0.1060
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Overall length0.399
Overall width0.158
RakePositive
Rake angle27
