Kennametal

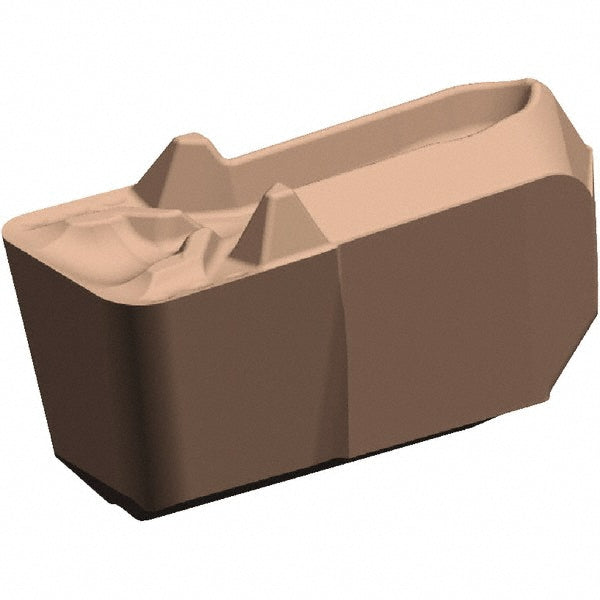

Carbide Insert, Grade KCU25, AlTiN - Kennametal 5941111
MFR# 5941111Series Beyond Evolution
$23.37List $28.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 5941111 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0156
Cutting height0.1580
Cutting width0.1250
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size3
Insert styleEG-P
Insert thickness0.1580
Manufacturer gradeKCU25
Maximum depth of cut0.0880
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
Overall length0.372
Overall width0.125
RakePositive
Rake angle27
