Kennametal

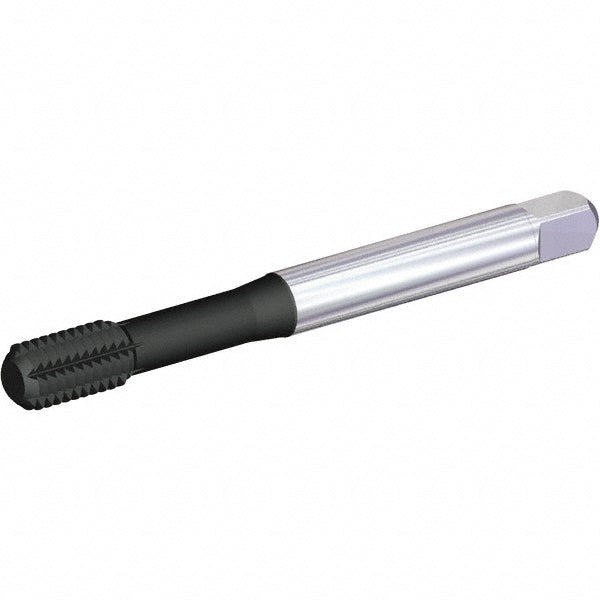

#10-32 UNF High-Speed Steel-E-PM Tap, AlCrTiN - Kennametal 5945352
MFR# 5945352
$78.87List $101.01
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-32
CoatingAlCrTiN
Description
The Kennametal 5945352 is a #10-32 UNF High-Speed Steel-E-PM tap with a AlCrTiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Coating finishAlCrTiN
Coolant throughNo
MaterialHigh-Speed Steel-E-PM
Material application codeP; M
Material gradeKSP27
Oil grooves4
Overall length2.7559
Shank diameter0.1940
Square size0.1520
Tapping depth0.9843
Thread directionRight Hand
Thread length0.3937
Thread limitH4
Thread size in#10-32
Thread standardUNF
Trade nameBeyond
