Kennametal

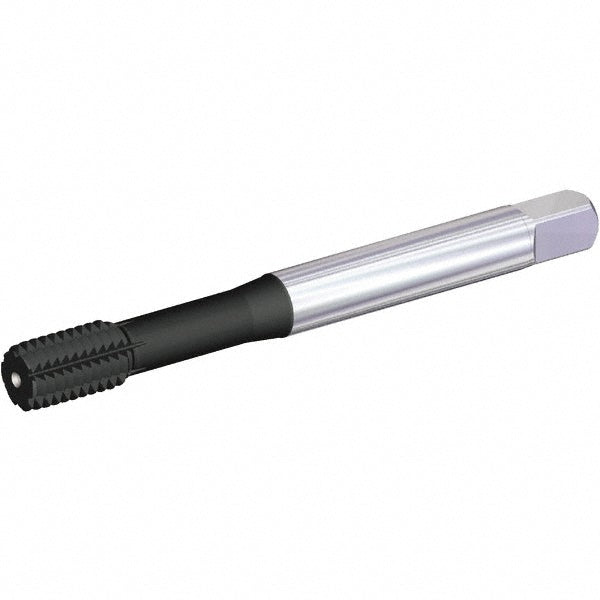

M8x1.25 Metric High-Speed Steel-E-PM Tap, AlCrTiN - Kennametal 5945468
MFR# 5945468
$104.88List $134.31
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingAlCrTiN
Description
The Kennametal 5945468 is a Metric High-Speed Steel-E-PM tap with a AlCrTiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Coating finishAlCrTiN
Coolant throughYes
MaterialHigh-Speed Steel-E-PM
Material application codeP; M
Material gradeKSP27
Oil grooves6
Overall length3.5433
Shank diameter0.3180
Square size0.2380
Tapping depth1.3780
Thread directionRight Hand
Thread length0.5512
Thread limitD9
Thread size (mm)M8x1.25
Thread standardMetric
Trade nameBeyond
