Kennametal

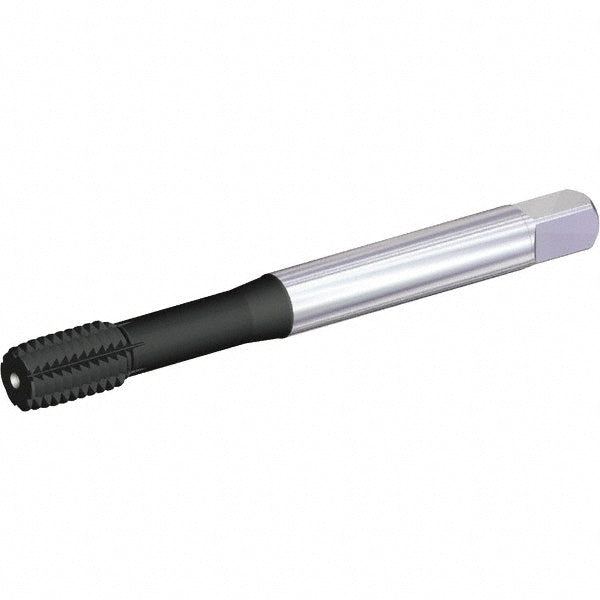

M6x1 Metric High-Speed Steel-E-PM Tap, AlCrTiN - Kennametal 5945634
MFR# 5945634
$79.21List $101.44
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingAlCrTiN
Description
The Kennametal 5945634 is a Metric High-Speed Steel-E-PM tap with a AlCrTiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Coating finishAlCrTiN
Coolant throughYes
MaterialHigh-Speed Steel-E-PM
Material application codeP; M
Material gradeKSP27
Oil grooves4
Overall length3.1496
Shank diameter0.2550
Square size0.1929
Tapping depth1.1811
Thread directionRight Hand
Thread length0.5118
Thread limitD8
Thread size (mm)M6x1
Thread standardMetric
Trade nameBeyond
