Kennametal

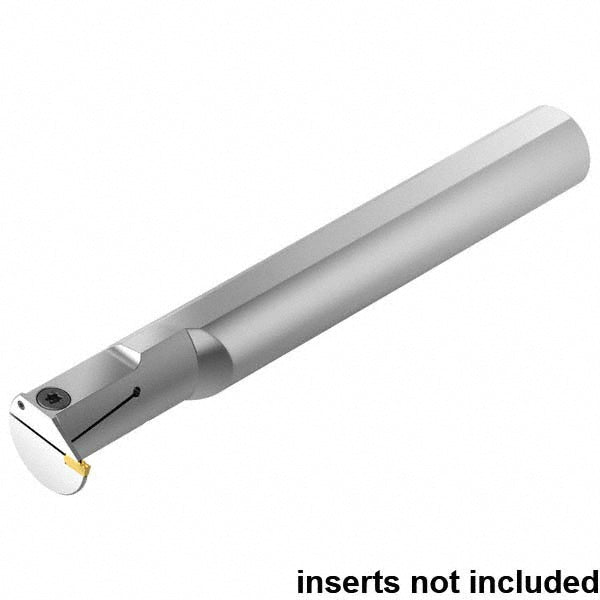

Indexable Boring - Kennametal 5954293
MFR# 5954293Series Beyond Evolution
$323.38List $394.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5954293 indexable boring. Series Beyond Evolution.
Specifications
Back of bar to cutting edge7.8740
Body diameter1.0000
Center to cutting edge0.6810
Coolant hole diameter0.1600
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityEG0300M03P02
Insert holding methodClamp
Lead angle0
Maximum bore depth2.0000
Minimum bore diameter1.2500
Multi use toolYes
Overall length7.8740
Shank diameter in1
Toolholder styleA-EVE
