Kennametal

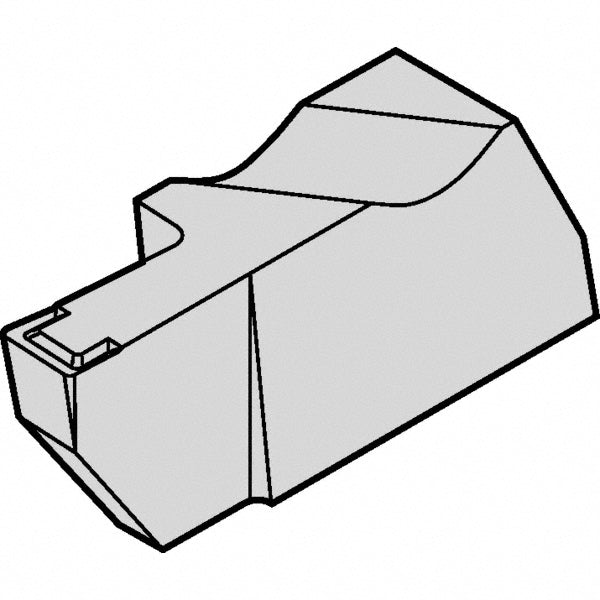

Carbide Insert, Grade KCU25, AlTiN - Kennametal 5955623
MFR# 5955623Series NGD
$28.35List $34.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 5955623 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width (mm)2.00
External relief angle3
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNGD
Insert thickness0.3440
Internal relief angle3
Manufacturer gradeKCU25
Maximum depth of cut0.1600
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Overall width0.196
Rake angle3
