Kennametal

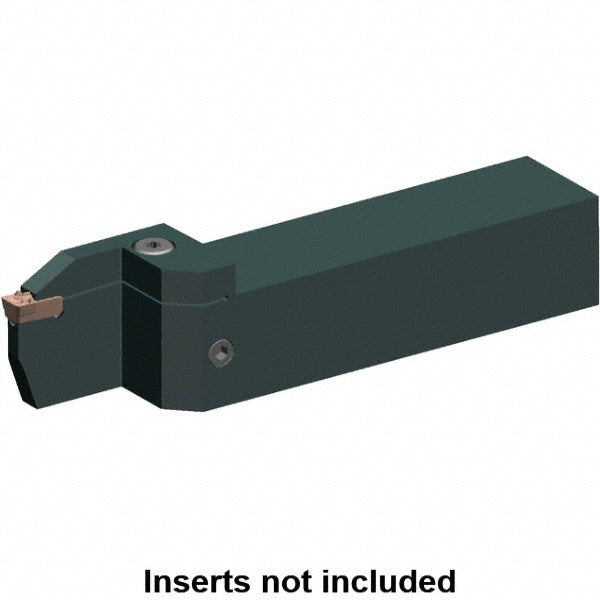

Indexable Cut-Off - Kennametal 5956449
MFR# 5956449Series Beyond Evolution
$164.29List $200.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5956449 indexable cut-off. Series Beyond Evolution.
Specifications
Blade width0.0610
Compatible insert size codeEG0200M02P02
Complete insert compatibilityEG0200M02P02
Coolant throughNo
Hand of holderRight
Head height1.3540
Head length1.6540
Insert holding methodClamp
Insert seat size2
Maximum depth of cut1.0240
Maximum insert width0.0610
Maximum workpiece diameter2.0480
Overall length in6
Shank height in1
Shank length4.3460
Shank width diameter in1
Toolholder styleEVSM
