Kennametal

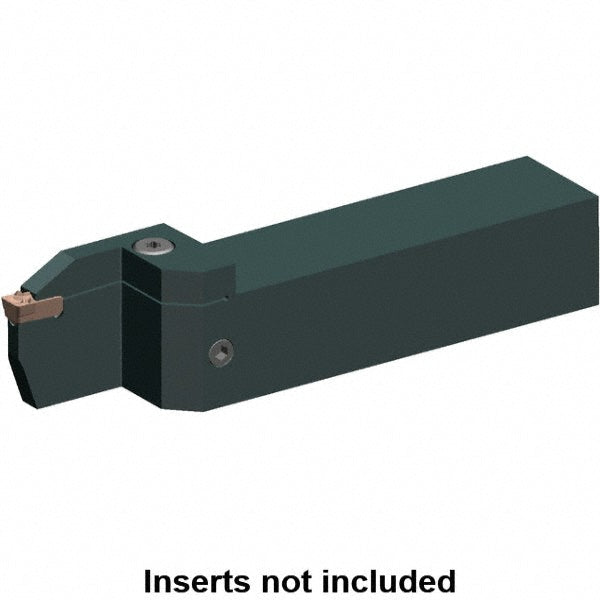

Indexable Cut-Off - Kennametal 5956542
MFR# 5956542Series Beyond Evolution
$158.54List $193.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5956542 indexable cut-off. Series Beyond Evolution.
Specifications
Blade width0.0610
Compatible insert size codeEG0200M02P02
Complete insert compatibilityEG0200M02P02
Coolant throughNo
Hand of holderRight
Head height1.0260
Head length1.2200
Insert holding methodClamp
Insert seat size2
Maximum depth of cut0.6300
Maximum insert width0.0610
Maximum workpiece diameter1.2600
Overall length in4-1/2
Shank height in3/4
Shank length3.2800
Shank width diameter in3/4
Toolholder styleEVSM
