Carbide Insert, Grade KCMS35, TiAlN - Kennametal 5964104

Kennametal

Carbide Insert, Grade KCMS35, TiAlN - Kennametal 5964104

MFR# 5964104Series KSEM

$124.15List $159.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCMS35
CoatingTiAlN

Description

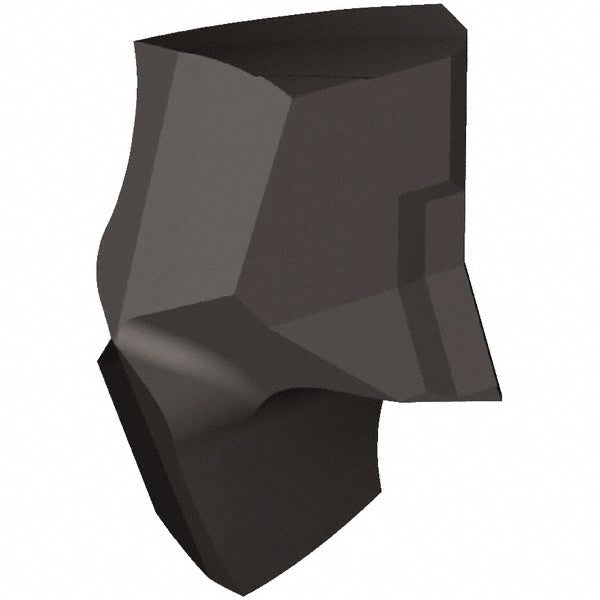

The Kennametal 5964104 is a carbide indexable insert, grade KCMS35, TiAlN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in5/8
DrillingInclinedExit
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3126
Height (mm)11.00
Included angle degree140
Insert geometrySPL
Insert holding methodClamp
Insert seat size1
Iso numberKSEM0625SPL
Manufacturer gradeKCMS35
Material gradeFine Grain
Number of flutes2
Overall length projection0.4146
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/4margin/coolant
