Kennametal

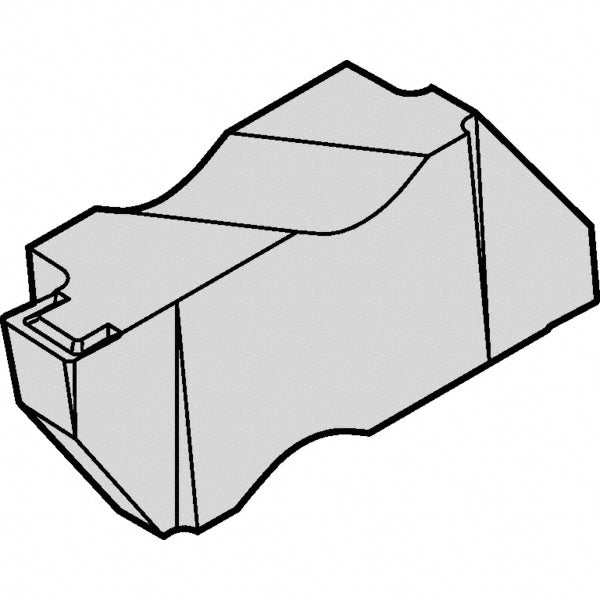

Carbide Insert, Grade KCP25B, TiOCN - Kennametal 5968000
MFR# 5968000Series Top Notch
$34.50List $42.11
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCP25B
MaterialCarbide
CoatingTiOCN
Description
The Kennametal 5968000 is a carbide indexable insert, grade KCP25B, TiOCN coated.
Specifications
Chip breakerK
Coating finishTiOCN
Coating processCVD
Corner radius0.0035
Cutting height0.2190
Cutting width0.0470
Full radiusNo
Gage diameter in3/16
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2
Insert styleNG
Insert thickness0.2190
Lead angle1
Manufacturer gradeKCP25B
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall width0.151
RakePositive
Rake angle3
