Kennametal

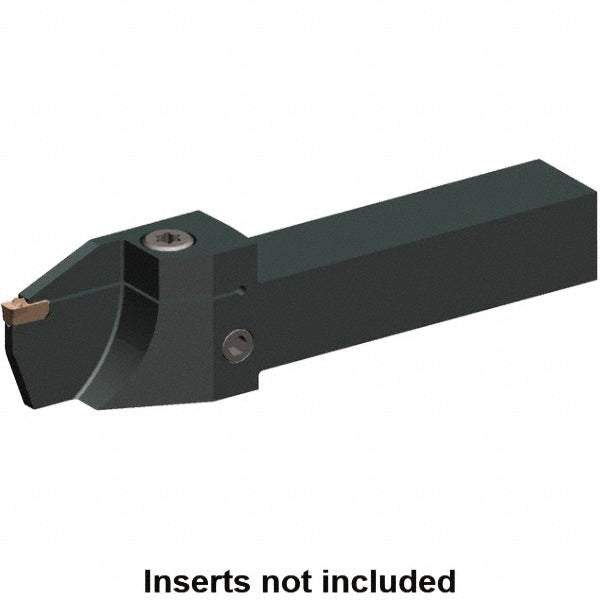

Indexable Grooving - Kennametal 5981020
MFR# 5981020Series Beyond Evolution
$230.03List $280.78
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 5981020 indexable grooving. Series Beyond Evolution.
Specifications
Back of bar to cutting edge6.0000
Complete insert compatibilityEG0400M04P04
Coolant throughYes
Hand of holderLeft Hand
Head height1.3540
Head length1.8500
Insert compatibilityEG0400M04P04
Insert holding methodClamp
Insert seat size4.0
Internal or externalExternal
Maximum depth of cut1.0240
Maximum groove width0.1580
Minimum groove width0.1580
Mount size1616
Overall length (mm)152.40
Shank height in1
Shank length4.1500
Shank width diameter in1
Toolholder styleEVSC-T
