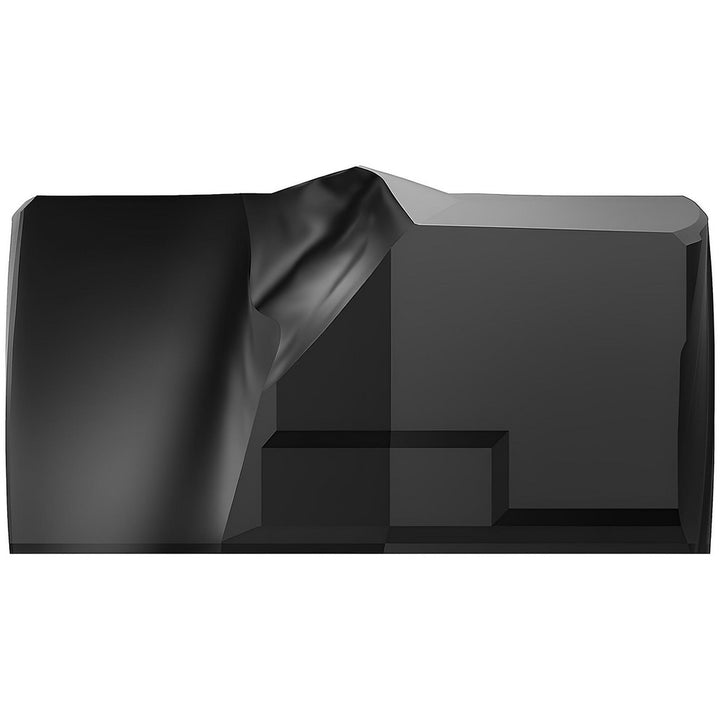

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5981596

Kennametal

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5981596

MFR# 5981596Series KSEM

$250.67List $321.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN

Description

The Kennametal 5981596 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling:FlatBottom; CounterBoring
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.1220
DrillingCross-HoleDrilling
Drill point angle140
Flute length (mm)14.00
Flute typeStraight
Functional length0.5610
Height in39/64
Included angle degree140
Insert geometryFEG
Insert holding methodClamp
Insert seat size7
Iso numberKSEM2850FEGM
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.6090
Point typeFlat
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeStraight
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/4margin/coolant
