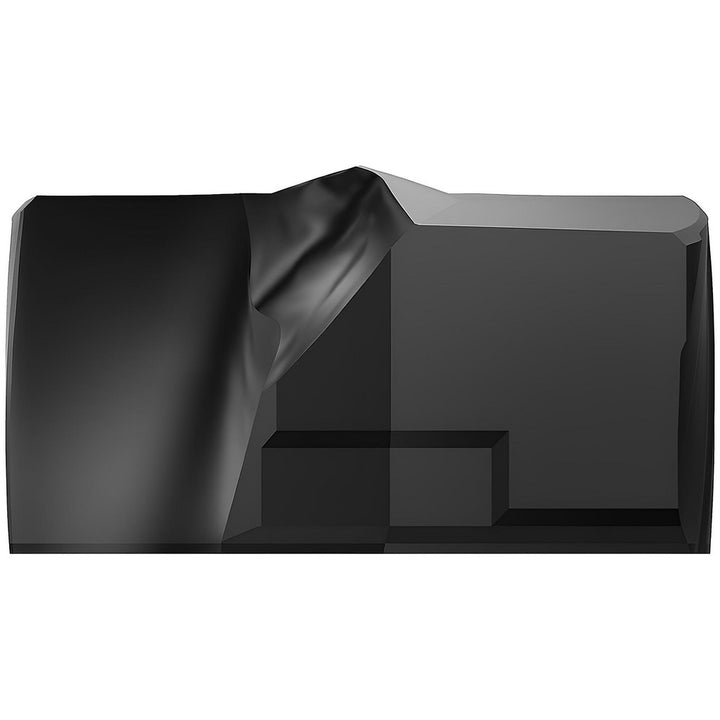

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5981610

Kennametal

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5981610

MFR# 5981610Series KSEM

$251.47List $322.05 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN

Description

The Kennametal 5981610 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling:FlatBottom; CounterBoring
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.5354
DrillingCross-HoleDrilling
Drill point angle140
Flute length (mm)19.00
Flute typeStraight
Functional length0.7675
Height (mm)21.00
Included angle degree140
Insert geometryFEG
Insert holding methodClamp
Insert seat size10
Iso numberKSEM3900FEGM
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.8265
Point typeFlat
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeStraight
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/4margin/coolant
