Kennametal

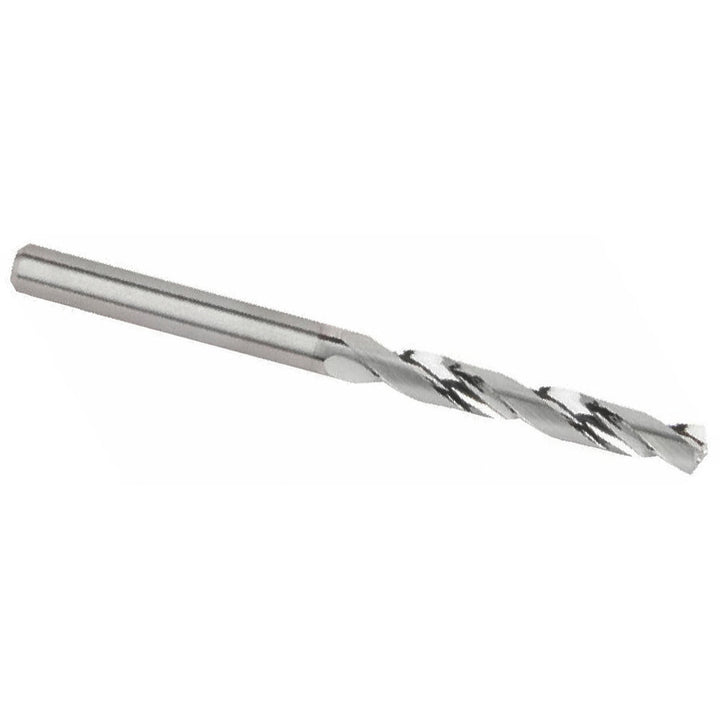

Letter Q Solid Carbide Drill Bit, 135° point - Kennametal 5987782
MFR# 5987782Series B284HPS
$197.07List $252.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kennametal 5987782 is a Letter Q Solid Carbide drill bit, 135° point. Series B284HPS.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.006 to 0.021 mm
Drill bit size0.3320
Drill bit size letterQ
Drill bit size range0.3000 to 0.3500
Drill point angle135
Drill point length (mm)1.56
Flute by diameter ratio3xD
Flute length1.8504
Flute typeRegular Spiral
Maximum drilling depth (mm)35.00
Number of flutes2
Overall length3.5039
Point typeStandard
Shank diameter0.3937
Shank length1.5748
Shank type3-Flat
Spiral typeRegular
Tool materialSolid Carbide
