Kennametal

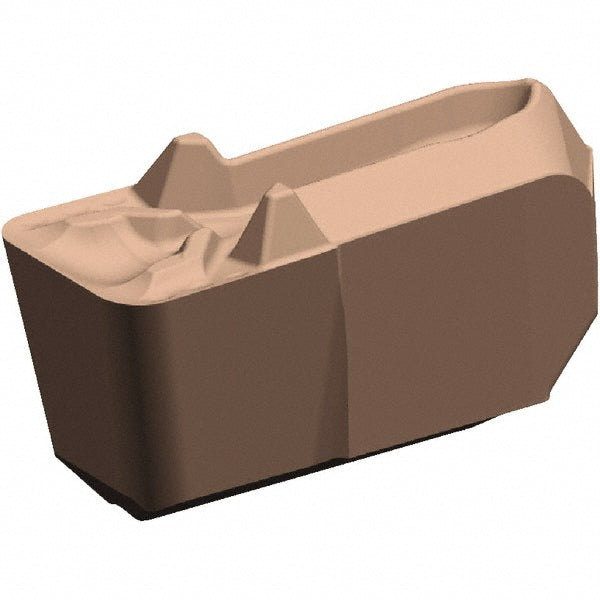

Carbide Insert, Grade KCU25, AlTiN - Kennametal 5988787
MFR# 5988787Series Beyond Evolution
$22.48List $27.44
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 5988787 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting height0.1280
Cutting width0.0940
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size2
Insert styleEG-P
Insert thickness0.1280
Manufacturer gradeKCU25
Maximum depth of cut0.0680
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall length0.35
Overall width0.094
RakePositive
Rake angle22
