Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 5988788
MFR# 5988788Series Beyond Evolution
$29.81List $36.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

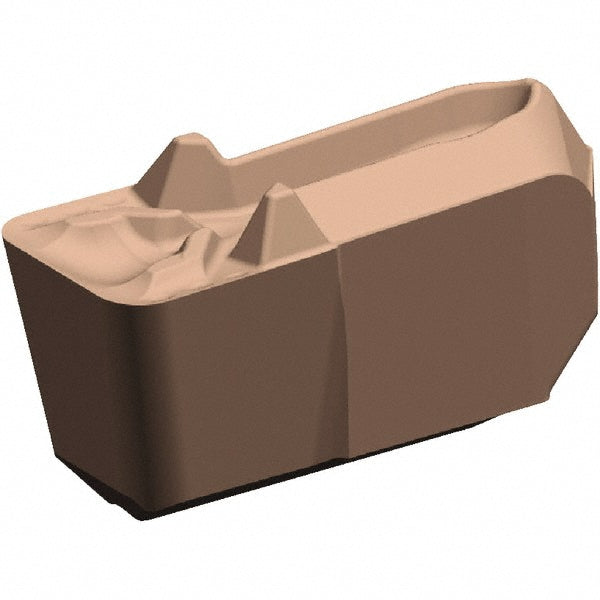

The Kennametal 5988788 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Cutting height0.2000
Cutting width0.2500
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size6
Insert styleEG-P
Insert thickness0.2000
Manufacturer gradeKCU25
Maximum depth of cut0.1570
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
Overall length0.572
Overall width0.25
RakePositive
Rake angle27
