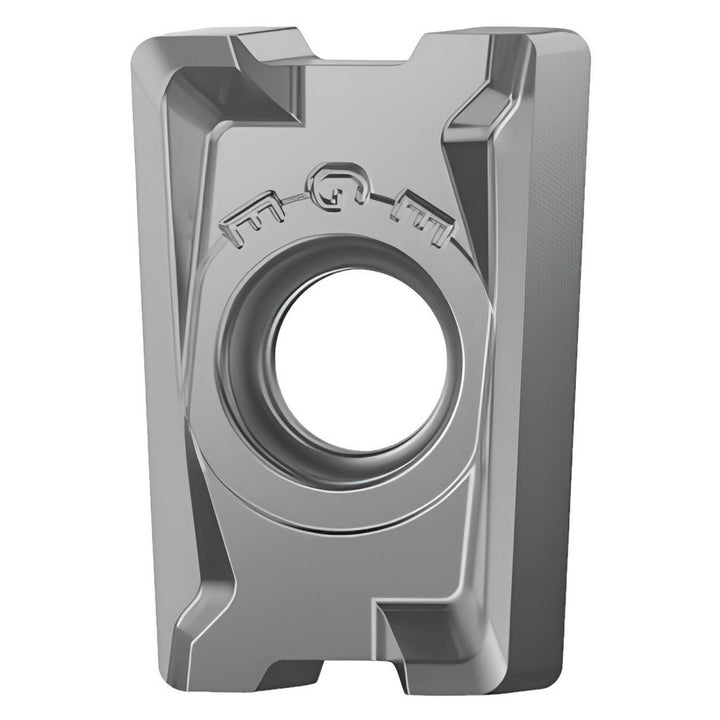

LNGU15T604ERGEJ Solid Carbide Insert, Grade KC422M, TiB2 - Kennametal 6001231

Kennametal

LNGU15T604ERGEJ Solid Carbide Insert, Grade KC422M, TiB2 - Kennametal 6001231

MFR# 6001231ISO/ANSI# LNGU15T604ERGEJCat# LNGU15T604ERGEJSeries LNGU

$47.20List $57.61 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeKC422M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 6001231 is a LNGU15T604ERGEJ solid carbide indexable insert, grade KC422M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeLNGU541ERGEJ
Chip breakerGE
Coating finishTiB2
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 4-15
Cutting edge styleHoned
Hole diameter0.1831
Included angle degree90
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code541
Insert styleLNGU
Iso codeLNGU15T604ERGEJ
Length0.6700
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T604ERGEJ
Manufacturer gradeKC422M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3940
